SEAFOREST Flexible Solar Panels ～Next-generation solution featuring light weight, high strength, and curved surface installation～
Feb 28, 2026
Where there is sun, there is a SEAFOREST solar panel.
SEAFOREST Flexible Solar Panels
～Next-generation solution featuring light weight, high strength, and curved surface installation～
1. SEAFOREST's Proven Track Record in Japan and Construction Performance
①, Our SEAFOREST framed flexible solar panels have cleared strict Japanese quality standards and performance evaluations (such as JPEA registration), and have a proven track record of stable supply to Japan.
②, Unlike complex adhesive methods, our construction using dedicated crimping fittings allows us to present a clear mechanical fixing basis in calculation documents, providing strong support for passing various applications and inspections.
③, The simple construction method, which does not require rails, makes it possible to significantly shorten construction periods and reduce costs.
2. High-Efficiency, High-Output Model Lineup

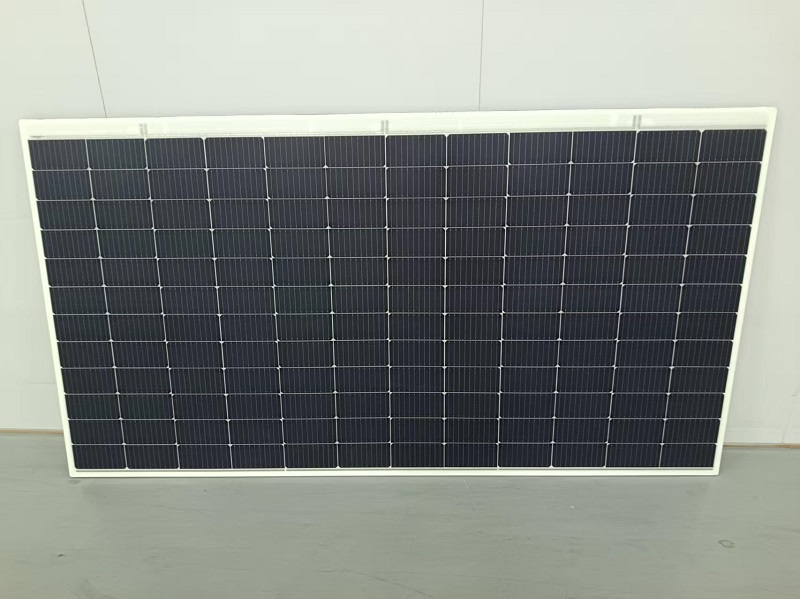

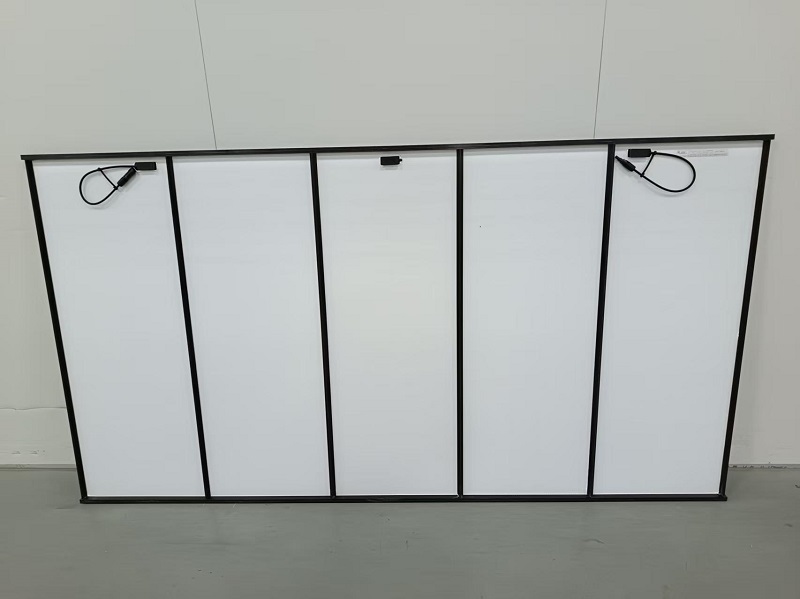

①, 520W Framed Flexible Panel (Model with proven track record of deliveries to Japan)
The "SEAFOREST Framed Flexible Solar Panel" is a product with a nominal maximum output of 520W and external dimensions of 2250mm × 1200mm × 35mm (including frame). The output tolerance is guaranteed at 0 to +5W (positive tolerance). Its electrical characteristics are: Voltage at Maximum Power (Vmp) 42.04V, Current at Maximum Power (Imp) 12.37A, Open Circuit Voltage (Voc) 49.90V, Short Circuit Current (Isc) 13.09A, and Maximum System Voltage 1500V. We already have a delivery record of 85 units for this model.
②, Latest 560W N-TOPCon High-Efficiency Model
The latest model achieves a maximum output of 560W, with Vmp 45.29V, Imp 12.37A, Voc 53.05V, Isc 12.96A, and a module conversion efficiency of 21.0%.
3. SEAFOREST Flexible Panel Unique Technological Advantages
Our flexible panels utilize proprietary technology to achieve performance and reliability surpassing conventional products.
①, Ultimate Lightweight Design
Weighing only 2.9kg/m², it is less than 30% of the weight of traditional glass modules (11-14kg/m²). This minimizes the additional load on existing roofs.
②, Exceptional Flexibility
Achieving a bending radius of 0.3m, it perfectly conforms to curved or specially shaped roofs of factories, warehouses, gymnasiums, etc.
③, Innovative Anti-Micro Crack Technology
Through specialized cell processing and encapsulation technology, cracks do not occur under bending or impact. It achieves zero power degradation after both the IEC-standard hail impact test and a continuous 10,000-cycle bend test at the minimum 0.3m bending radius.
④, Superior Wind and Snow Load Resistance
It has passed a 17-grade wind tunnel test (wind speed 56m/s) and a 5400Pa front load test (equivalent to approx. 2m of snow accumulation), demonstrating durability to withstand harsh climatic conditions.
⑤, Innovative Installation Methods
Installation is possible via direct adhesion (no mounting frame required) or dedicated clamp fixation (no rails required), offering excellent construction simplicity, cost reduction, and maintainability.
⑥, Comprehensive Environmental Adaptability
Features include improved heat dissipation due to the thin 1.8mm design, a self-cleaning function (lotus effect) from a highly weather-resistant fluororesin coating, and excellent resistance to salt damage and ammonia corrosion due to the metal frame-less design. It has also cleared enhanced salt spray and ammonia corrosion tests.
⑦, Excellent Safety
It achieves a fire rating of UL790 Class C, making it suitable for applications requiring high fire safety, such as industrial/commercial roofs and public facilities (There have been no fire incidents reported with our flexible modules, unlike some from other Chinese manufacturers).
⑧, Environmental Compatibility
It has also passed anti-glare (light pollution prevention) tests, demonstrating consideration for the surrounding environment.
4. Contact Information
Head Office: XIAMEN SEASHINE FOREST INDUSTRY AND TRADE CO., LTD.
〒361010 Room 2206, No. 6 Hubin East Road, Xiamen, Fujian, China
US Company: SEA FOREST ENERGY STORAGE SOLUTION CORP
Japan Office: Eri Ezaki 080-4667-6168
Contact: Kaku Guo
Tel: 0086-592-5657925 Fax: 0086-592-5628163
Mobile/WhatsApp: 0086-1360-6089-112
Website: www.seaforestpv.com
【Management Policy】 Honesty, Altruism, Innovation, Enterprise
Over 14 years of new energy trading experience with Japan.
